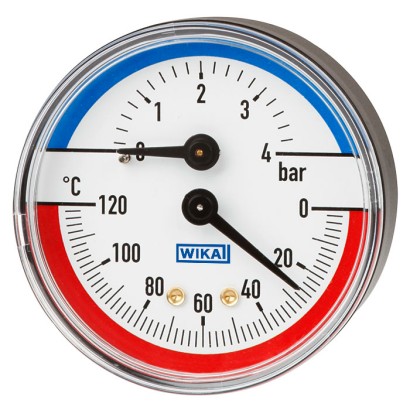

Bimetal thermomanometer 100.02

Applications

• Heating systems

• Combi-boilers with hot water and heating

Special features

• Combined indication for pressure and temperature

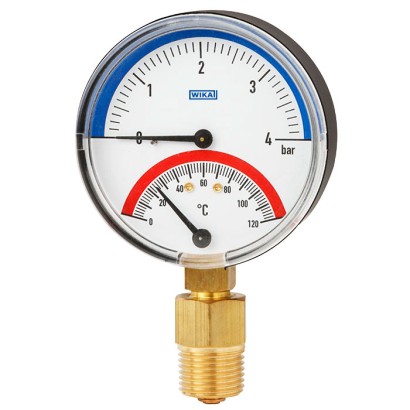

  Model 100.01: At the top pressure, at the bottom temperature, temperature scale bent downward
  Model 100.02: At the top pressure, at the bottom temperature
  Models 100.10 and 100.12: At the top temperature, at the bottom pressure

• Scale ranges to 0 … 16 bar, 0 ... 150 °C

Description

The thermomanometer with bimetal system is fitted directly at the measuring point via a stem. The valve allows the measuring instrument to be unscrewed without having to empty the heating system first. Due to the combination of a pressure gauge and a bimetal thermometer the instrument can be used flexibly in a wide variety of applications.

Nominal size in mm
63, 80

Accuracy class

• Pressure:        2.5 (EN 837-1)

• Temperature:   ±2.5 °C

Scale ranges

• Pressure:          0 ... 1 to 0 ... 16 bar

• Temperature:     0 ... 100 to 0 ... 150 °C

Working ranges

• Pressure:         Steady:         3/4 x full scale value
                         Fluctuating:   2/3 x full scale value
                         Short time:    Full scale value

• Temperature:    Full scale value

Measuring elements

• Pressure:         Bourdon tube, copper alloy

• Temperature:    Bimetal coil, copper alloy
