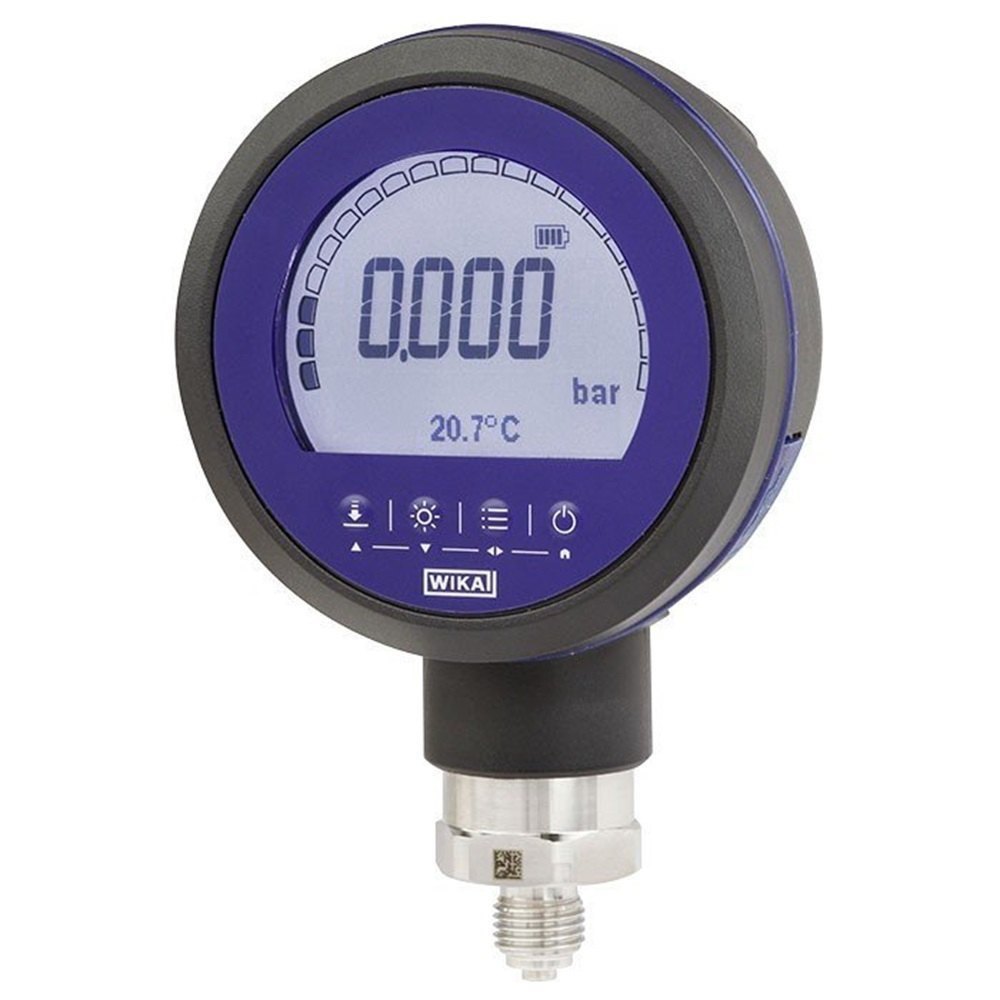

DG-10-S Stainless Steel Digital Gauge -1 to 600Bar, 1/4" NPT(M)
WIKA
$2000.00$1814.00
Applications of the digital pressure gauge
Oil and gas industry
Maintenance and service facilities
Calibration service companies and service industry
Simple calibrations directly on site
Measuring range
Gauge Pressure (Bar)
0…5 / 0…10 / 0…20 / 0…50 / 0…100 / 0…160 / 0…200 / 0…250 / 0…400 / 0…600
Vacuum and +/- measuring ranges (Bar)
-1…+5 / -1…+10
Hardware functions
Rotatability of the display
The display of the model DG-10-E can be rotated through 300°, thus it can be read from almost any position. Therefore the model DG-10-E can also be used in situations where mounting is difficult.
Backlighting
The model DG-10-E features backlighting so that the display can be easily read, even under poor lighting conditions.
Process connection
G1/2B , G1/4B , 1/2NPT, 1/4NPT, G1B flush, G1/2B flush
Display
7-segment LCD
Pressure units
Standard: psi, bar
Selectable to: mbar, kg/cm², Pa, hPa, kPa, Mpa, mmH2O, mH2O, inH2O, inH2O (4 °C), inH2O (20 °C), inH2O (60 °F), ftH2O, mmHg, cmHg, inHg, inHg (0 °C), inHg (60 °F), kp/cm2, lbf/ft2, kN/m2, atm, Torr, micron as well as user-defined units
Memory
Standard: Min./Max.
Menu functions
Min. / Max. alarm (visual), power-off function, measuring rate, mean value filter, pressure rate, mean value (via adjustable interval), level indicator, Tare offset, display damping
