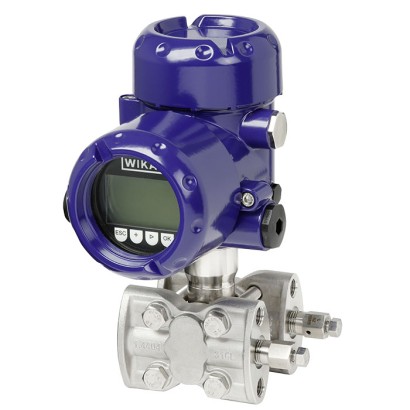

DPT-10 Pressure Transmitter

With its 4 ... 20 mA, 4 ... 20 mA Hart®, Profibus® Pa Or Foundation Fieldbus™ output signals, combined with either intrinsically-safe or flameproof ignition protection (in accordance with ATEX), the DPT-10 is ideally suited to applications requiring these features. The electronics of all transmitters with explosion protection, even for the flameproof variant, are intrinsically safe. Thus it is possible to make adjustments on the instrument in EX areas while the instrument is live.

Applications:

• Process engineering

• Pharmaceutical

• Food and beverage industries

Special features:

• High measuring accuracy

• Scalable measuring ranges

• Various hazardous area approvals

• Seven different housing variants

• Configuration via DTM (Device Type Manager) according to FDT (Field Device Tool) - concept (e.g. PACTware)
