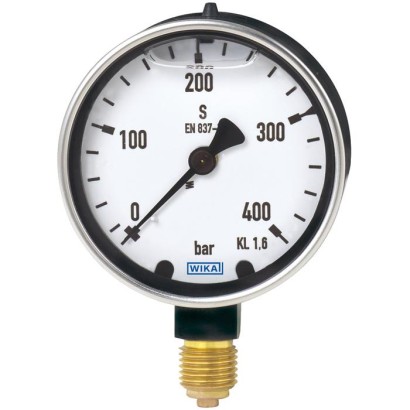

Model 213.40 Bourdon tube pressure gauge, copper alloy
WIKA
$190.00$122.00
Intended for adverse service conditions
Suitable for gaseous or liquid media that will not obstruct the pressure system
Vibration and shock resistant
Solid forged-brass case and socket
Pressure ranges up to 15000 PSI
Movement: Copper alloy
Case: Stainless steel with vent plug
Bourdon Tube: Copper alloy
Pressure Connection: Copper alloy
Window: Polycarbonate with Buna N Gasket
Dial: White ABS (2" & 2 1/2"), White aluminium (4")
Pointer: Black aluminium
Accuracy: 2" & 2 1/2" Ä… 2 1/2% of span ASME B40.100 Grade A
4" Ä… 1% of span ASME B40.100 Grade A
ASME B40.100 % EN 837-1 Design
