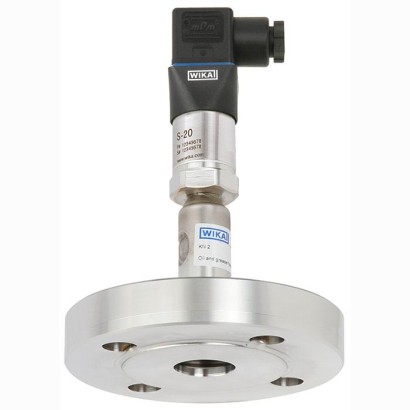

Model DSS26T High-quality pressure sensor with mounted diaphragm seal
WIKA
$998.00$882.00
Technical Information
Specifications according to data sheet | DS 95.10 |
Output signal | 4...20 mA, 2-wire |
Power supply | DC 8...35 V |
Accuracy at reference | ≤ ±0,5 % of span |
Permissible humidity (per IEC 68-2-78) | ≤ 67 % r. h. at 40 °C [104 °F] (in accordance with 4K4H per EN 60721-3-4) |
Diaphragm seal variant | flange connection, internal diaphragm |
Standard article | |
Pressure measuring instrument | High-quality pressure transmitter |
Assembly | direct assembly |
System fill fluid | KN 2 Silicone oil for general applications |
Process temperature min. | - 10°C |
Process temperature max. | + 150°C |
Ambient temperature pressure meas. min | + 10°C |
Ambient temperature pressure meas. max | + 40°C |
