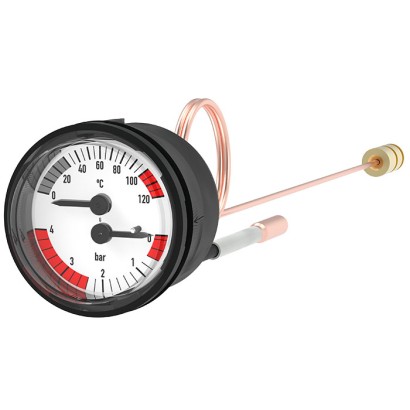

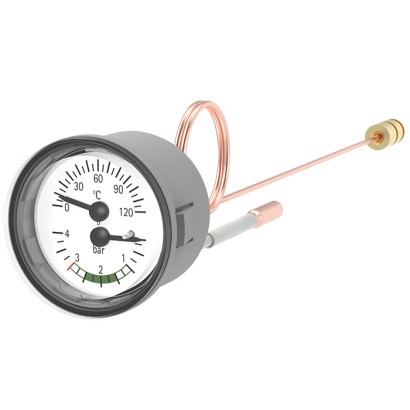

Model MFT Thermomanometer

Applications of the thermomanometer

• Heating facilities

• Combi-boiler with hot water and heating

Special Features of the thermomanometer

• Combined indication for pressure and temperature

• With capillaries

• Scale range 0 … 4 bar, 0 ... 120 °C

• Reliable and cost-effective

Description of the thermomanometer

Nominal size in mm
40, 42, 52

Working ranges

• Pressure:
  Steady: 3/4 x full scale value
  Short time: Full scale value

• Temperature:
  Full scale value

Measuring elements
Bourdon tube, Cu-alloy

Connection

• Cu-alloy, back mount (BM)

• Pressure: Male thread G 1/4 B (rotatable) with capillary

• Temperature: Capillary, with sensor D6, plastic covered

Case
Plastic, black, with front flange and lateral snap-fit provisions for panel mounting

Movement (pressure indication)
Cu-alloy

Dial
Plastic, white, black lettering

Pointer
Plastic, black

Window
Plastic, crystal-clear

The following options are available for the thermomanometer:

• Other scale ranges

• Capillary lengths (pressure, temperature), max. 5 m

• Capillary (pressure) plastic covered

• Other temperature sensor dimensions

• Other pressure connections

• Special scales
