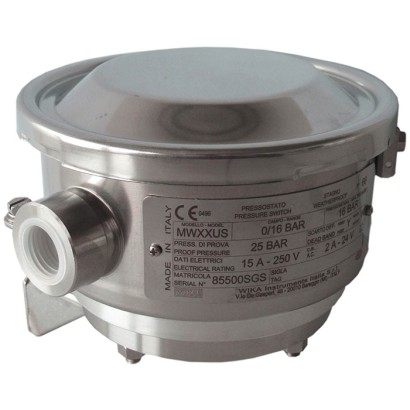

Model MW Diaphragm pressure switch
WIKA
$1339.00$904.00
Diaphragm pressure switch
Stainless steel case
Model MW
Specifications according to data sheet: PV 31.10
electric contacts: 2 x SPDT or 1 x DPDT silver contact
setting range: 30...600 bar
working range: Standard, working range = 0...16 bar, proof pressure 25 bar
Set Point not defined
process connection: 1/4 - 18 NPT-F
electrical connection: 1/2 -14 NPT-F
Enclosure with plate for wall or direct mounting
Ingress Protection: IP66
XXDN Diaphragm: Inconel 718/O-Ring: FPM/Connection: Stainless steel AISI 316L
