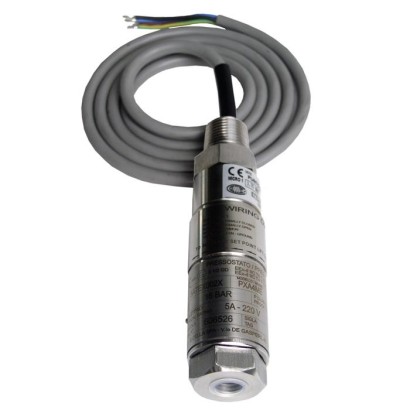

Model PXS Miniature pressure switch, stainless steel

Mini pressure switch

Stainless steel switch enclosure

Model PXS

Specifications according to data sheet: PV 34.36

Repeatability of set point: ≤ 1% of end of setting range

measuring element: diaphragm with antagonist spring, Hastelloy C276, welded or with O-ring (1…2,5 to 6…25 bar)

contacts: 1xSPDT, silver contact, hermetically sealed

measuring range, working range, proof pressure: 1,6 … 6 bar, working range 0 … 10 bar, proof pressure 16 bar

Setting range depending on the switching direction: increasing 2,1…6 bar; decreasing 1,6...5,8 bar

Set Point customer-specifically configured

process connection: 1/4 NPT-F

electrical connection: 1/2-14 NPT-M, with 5m cable

Mounting: direct mounting

brand: WIKA Instruments Italia

Ingress Protection: IP66

Connection: Stainless steel AISI 316L

PXS4ME

Approvals / Certificates

IECEx-ATEX Ex ia

1. set point: 4.15 bar decreasing
