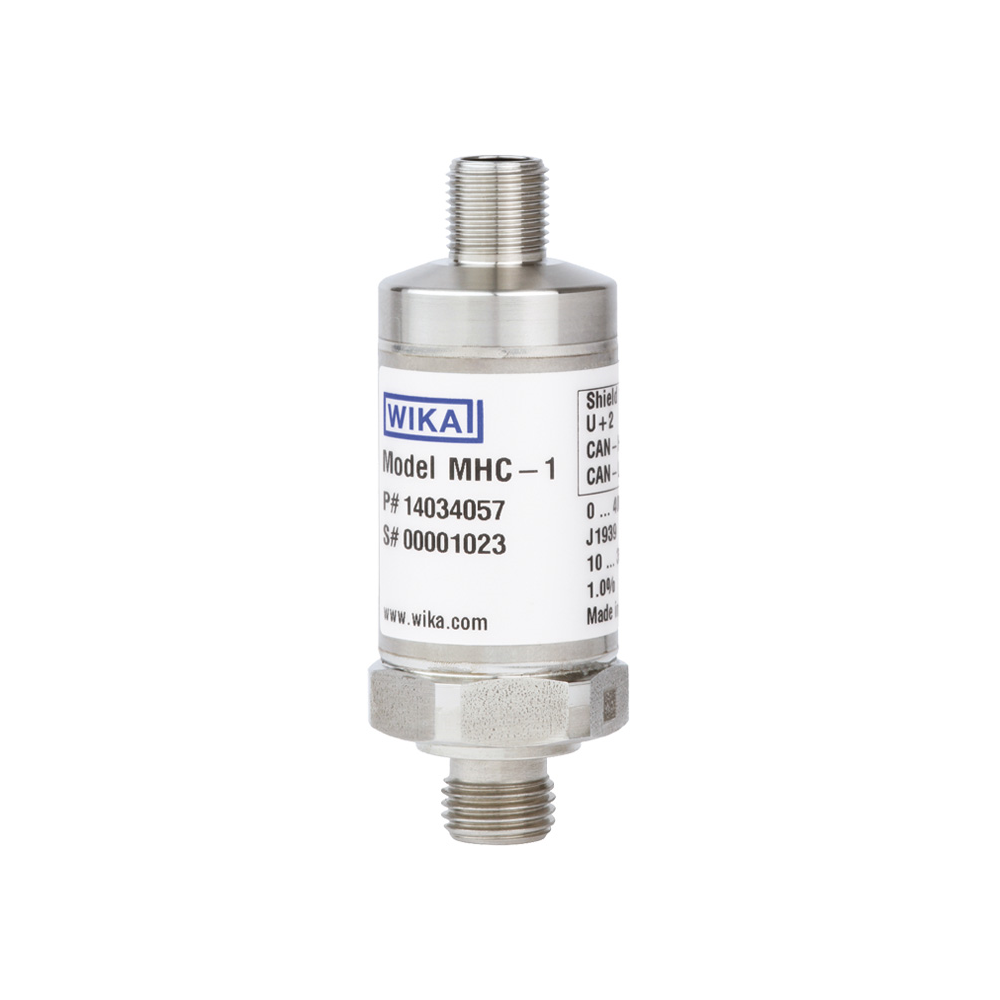

Pressure Transmitter MHC-1

Output Signals: CANopen or SAE J1939 protocols.

Pressure Ranges:

0…0.050 … 0.05

0…0.05

bar to

0…1,0000 … 1 comma 000

0…1,000

bar (approx.

0…0.70 … 0.7

0…0.7

psi to

0…14,5000 … 14 comma 500

0…14,500

psi).

Temperature Range: Operates between

-40∘Fnegative 40 raised to the composed with power F

−40∘F

and

212∘F212 raised to the composed with power F

212∘F

(

-40∘Cnegative 40 raised to the composed with power C

−40∘C

and

100∘C100 raised to the composed with power C

100∘C

).

Ingress Protection: IP 6K9K, suitable for harsh environments.

Accuracy: Non-linearity of 0.25 % or 0.5 %.

Voltage Supply:

10−30V10 minus 30 V

10−30V

DC.

Process Connection: Commonly G

1/41 / 4

1/4

A DIN 3852-E or

1/41 / 4

1/4

NPT.
